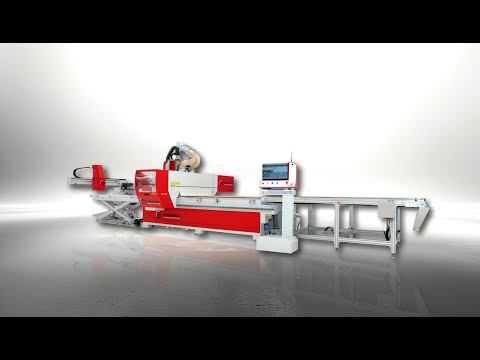

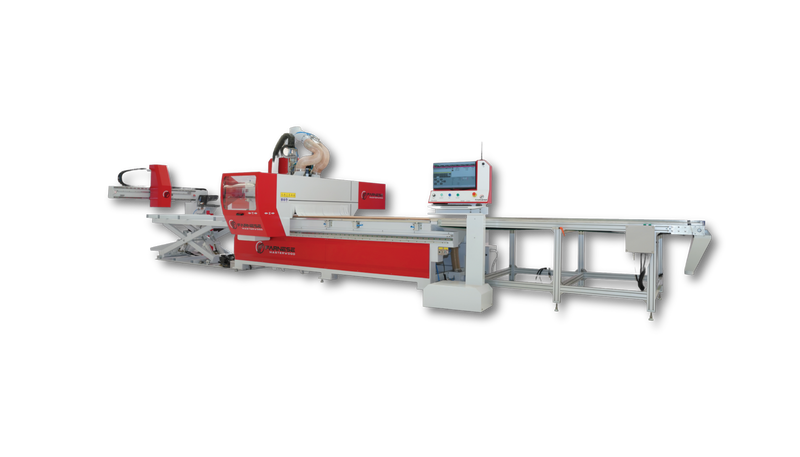

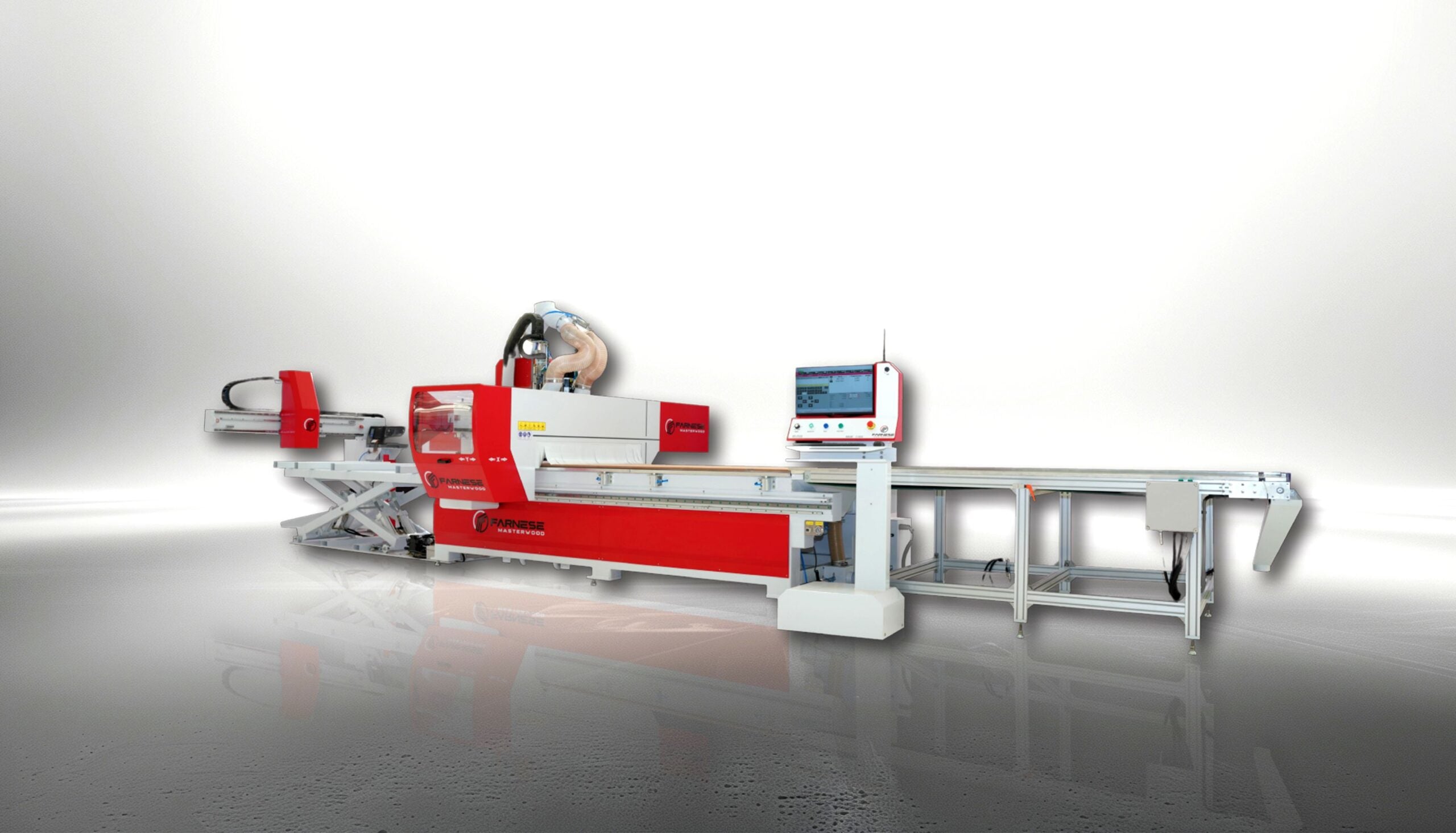

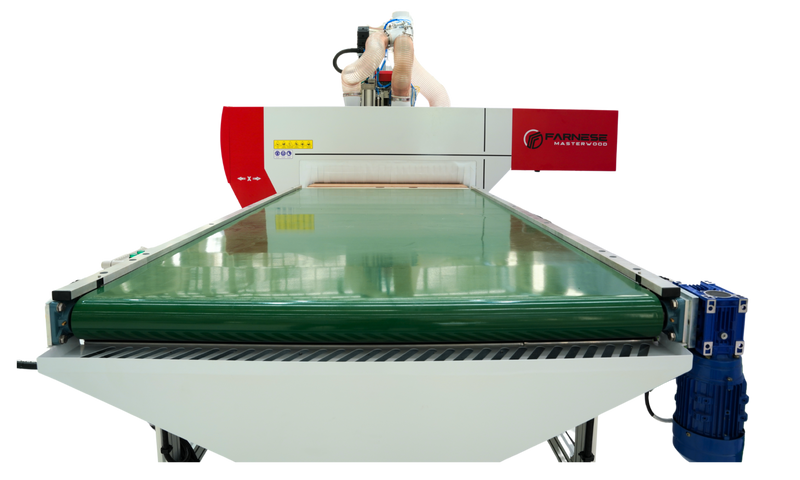

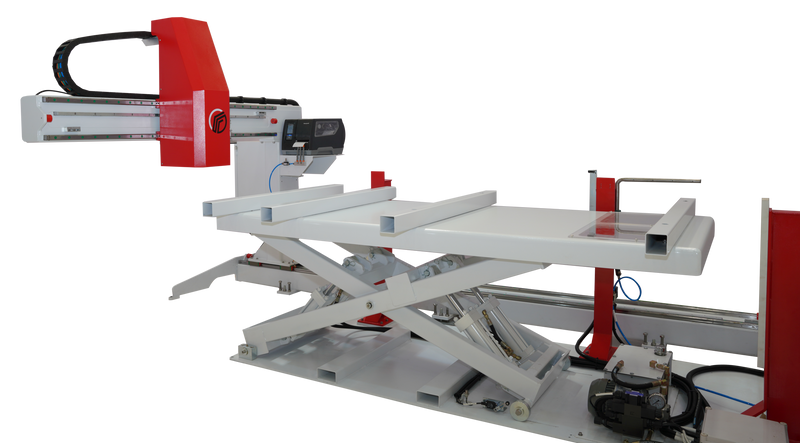

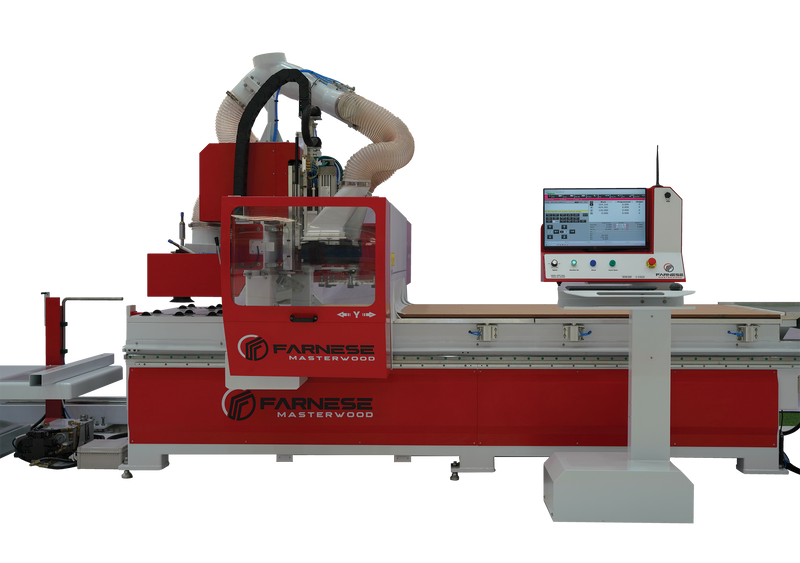

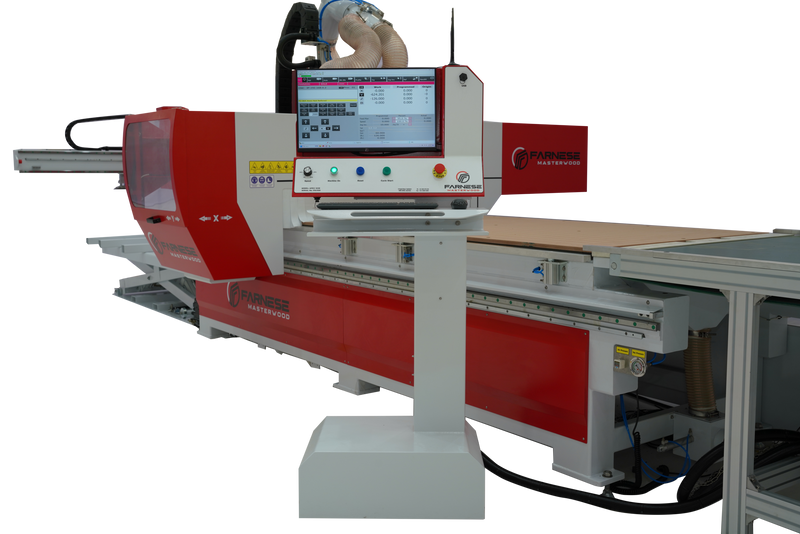

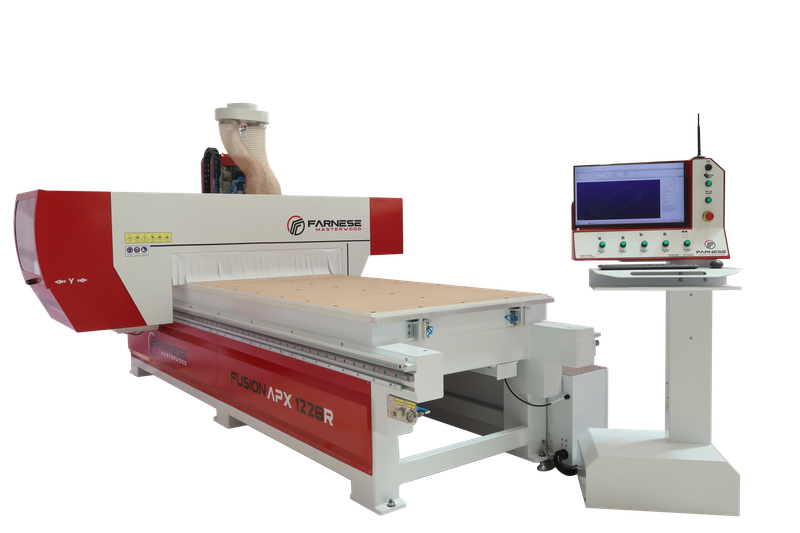

Fusion APX 1228R

The Fusion APX 1228R is a high-precision, heavy-duty machine equipped with a 9kW HSD router, renowned for its superior quality and durability. It features an automatic tool change system and versatile spindle rotation, making it suitable for various applications, including countertops.

• Spindle: High precision heavy duty 9kW (12.0Hp) router with internal cooling fan and ISO30 collet. The Automatic tool change feature combined with left or right spindle rotation make this a very versatile.
• Tool Rack: Gantry-mounted 12-slot rotary tool magazine for quick tool changes. Auto tool change via NC.

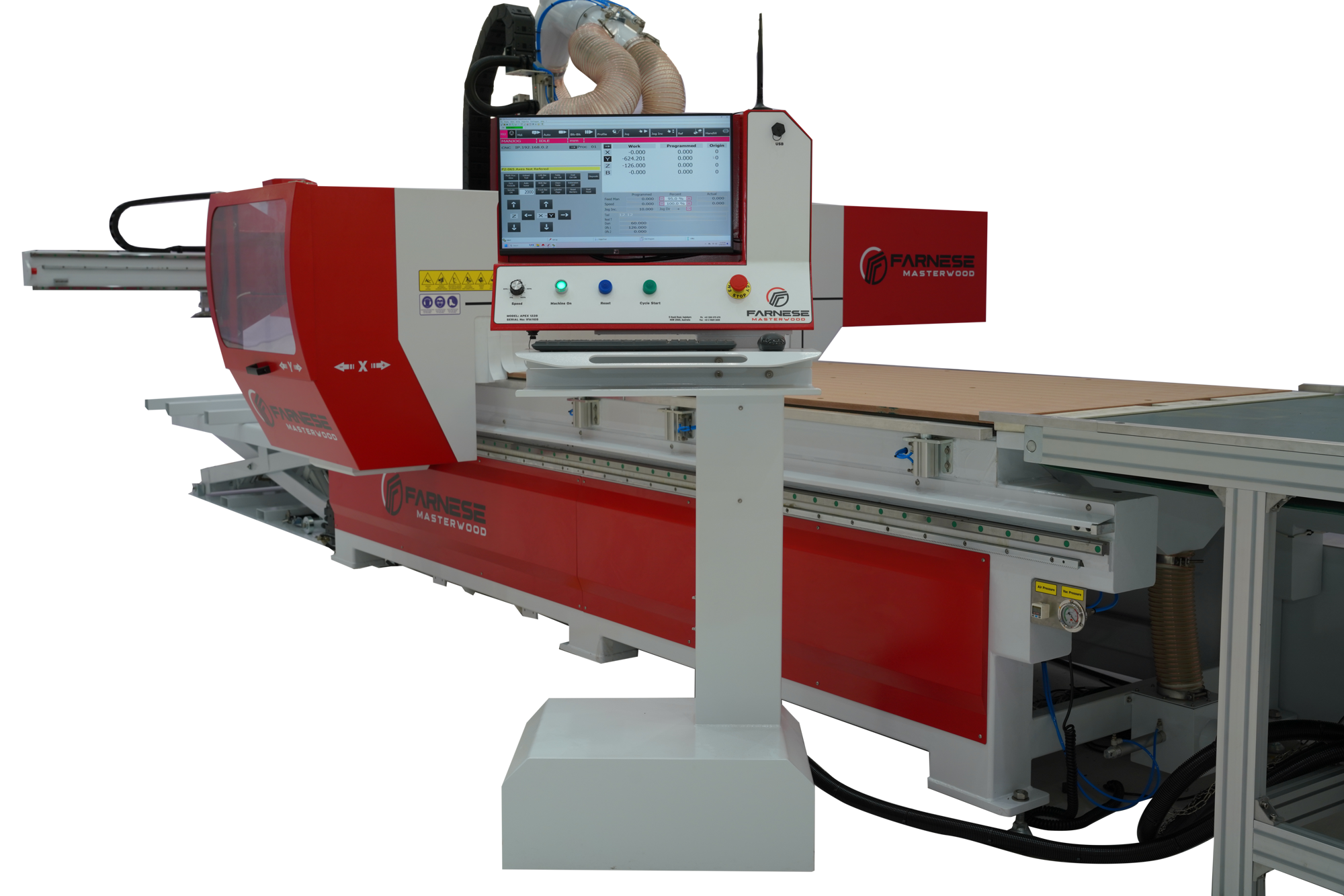

• PC Control: On board PC with user friendly Windows 11 operating system. Network interface facility for file sharing. internet remote assistance for ease of support.
• Tool Calibration Pad: The integrated sensor pad allows the operator to quickly.
• High Precision Drivers: All axis are driven by Servo motors with Planetary Gearboxes. Superior quality linear guides and bearings units are used on all three of the machine’s axis. Precise movement along the X and Y axis is achieved via induction hardened oblique/helical rack and pinion drive systems. Z axis (vertical) movement accuracy is assured via a precision ground re—circulating ball screw.
