Expert printing made easy.
Well-balanced entry-level models with excellent operational performance, image quality, speed and cost.

100 Series: Eco-solvent inkjet printer

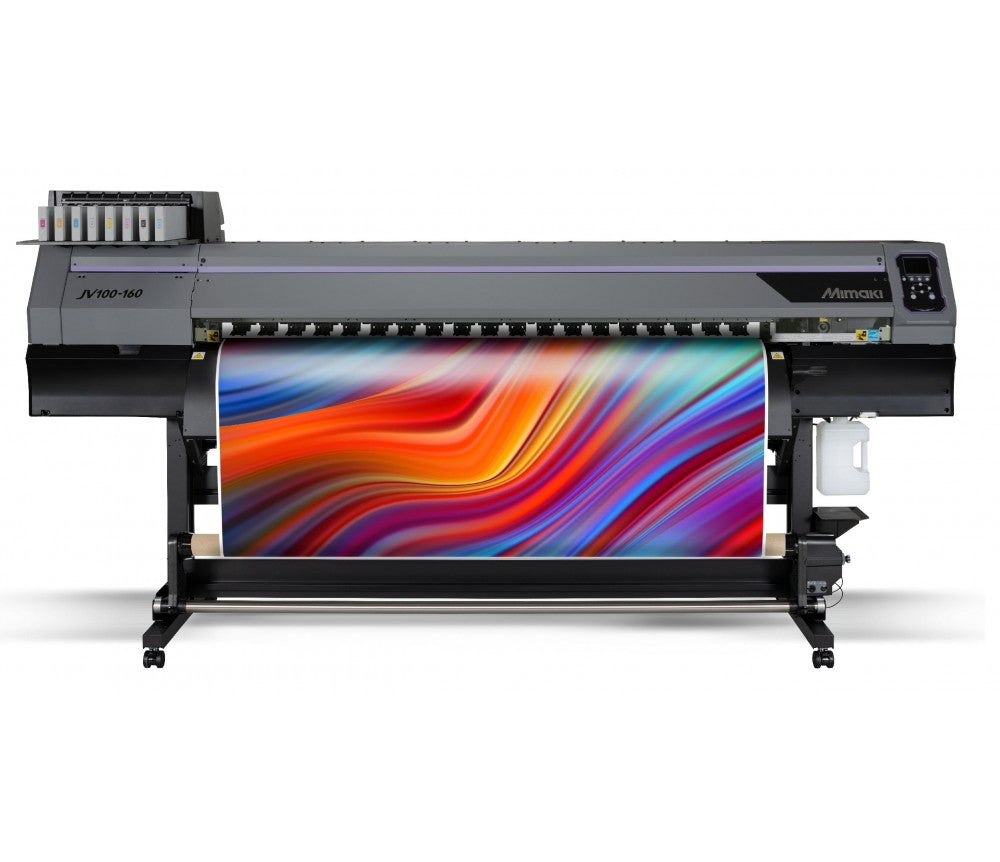

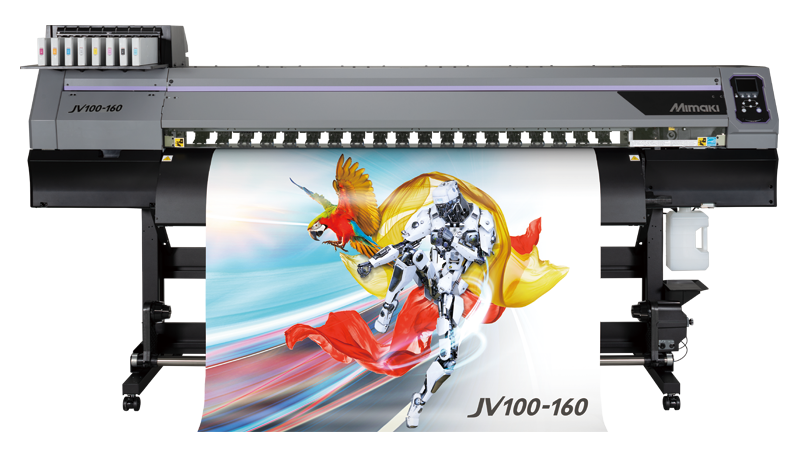

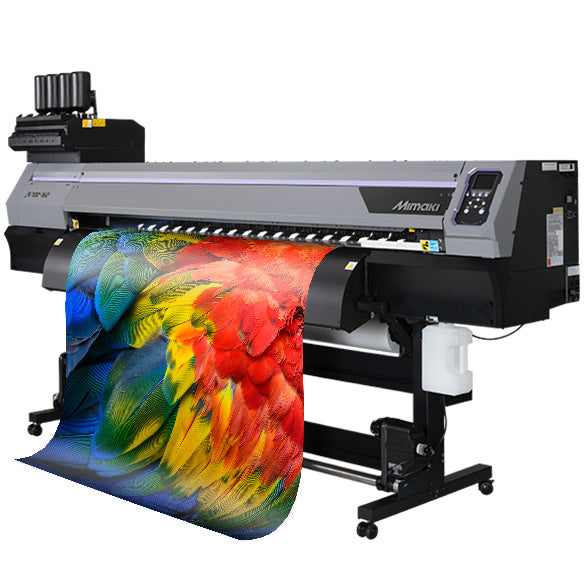

With two newly developed heads, the JV100-160 has pursued high quality, high productivity, and stable operation as a eco-solvent inkjet printer.

In addition to NCU (Nozzle Check Unit), NRS (Nozzle Recovery System), and MAPS4 (Mimaki Advanced Pass System4) that enable stable and high-quality printing, DAS (Dot Adjustment System) is also provided to new "100 series" printers. Dot position correction and feed amount correction, which used to be manual operations and require time and effort, can be automated, reducing the workload on the operator.
Product outlines

Abundant features that achieve Mimaki quality
  • Dot position / Feeding amount auto correcting function "DAS" Mimaki technology that enables stable and high-quality print

High productivity supported by high-quality functions
  • 6pass 20.0m²/h (PVC), 4pass 27.4m²/h (tarpaulin)

    Stable quality is achieved with eco-solvent ink with an excellent drying property
  • New AS5 and CS250 inks with excellent drying properties are used

    New and improved genuine RIP [RasterLink7] is provided as standard
  • RIP processing becomes faster to increase productivity


Read More Enquire Now

Print head - On-demand piezo head (2 staggered layout)
Print resolution - 360 dpi, 600 dpi, 720 dpi, 900 dpi, 1200 dpi
Ink
Type/ Colour - Eco-solvent ink
・AS5 (C,M,Y,K,Lc,Lm,Lk, and Or)
・SS21 (C,M,Y,K,Lc,Lm,Lk, and Or)
Capacity - 600ml Ink pack *1 / 2L Ink pack *2
Maximum print width - 1,610 mm (63.4 in)
Media Maximum width - 1,620 mm (63.8 in)
Thickness - 1 mm or lower
Roll diameter - φ250 mm or less
Roll weight - 45 kg or less
Roll inside diameter - 2 inch / 3 inch
Certifications - VCCI class A, FCC class A,
CE Marking (EMC, Low voltage, Machinery directive, and RoHS),
CB, ENERGY STAR®, RCM, EAC
Interface - USB2.0 / Ethernet 1000BASE-T
Power supply - Single-phase (AC100-120 / 200-240V±10%, 50/60Hz±1Hz) x2
Operational environment - Temperature: 20–30 °C (68–86 °F)
Humidity: 35–65% Rh (Non condensing)
Dimensions (W×D×H) 2,775 x 700 x 1,392 mm (109.3 x 27.6 x 54.8 in)
Weight 166 kg (366 lb)

Delivery and Installation is available across New Zealand.
Service, Warranty and Training is also available.
Charges may apply and will be quoted upon enquiry.
Finance options are also available – speak to one of our hardware experts today!

Specification

Print head - On-demand piezo head (2 staggered layout)
Print resolution - 360 dpi, 600 dpi, 720 dpi, 900 dpi, 1200 dpi
Ink
Type/ Colour - Eco-solvent ink
・AS5 (C,M,Y,K,Lc,Lm,Lk, and Or)
・SS21 (C,M,Y,K,Lc,Lm,Lk, and Or)
Capacity - 600ml Ink pack *1 / 2L Ink pack *2
Maximum print width - 1,610 mm (63.4 in)
Media Maximum width - 1,620 mm (63.8 in)
Thickness - 1 mm or lower
Roll diameter - φ250 mm or less
Roll weight - 45 kg or less
Roll inside diameter - 2 inch / 3 inch
Certifications - VCCI class A, FCC class A,
CE Marking (EMC, Low voltage, Machinery directive, and RoHS),
CB, ENERGY STAR®, RCM, EAC
Interface - USB2.0 / Ethernet 1000BASE-T
Power supply - Single-phase (AC100-120 / 200-240V±10%, 50/60Hz±1Hz) x2
Operational environment - Temperature: 20–30 °C (68–86 °F)
Humidity: 35–65% Rh (Non condensing)
Dimensions (W×D×H) 2,775 x 700 x 1,392 mm (109.3 x 27.6 x 54.8 in)
Weight 166 kg (366 lb)

Delivery Information

Delivery and Installation is available across New Zealand.
Service, Warranty and Training is also available.
Charges may apply and will be quoted upon enquiry.
Finance options are also available – speak to one of our hardware experts today!
