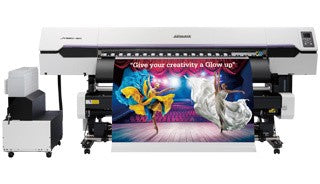

Mimaki JV330 -160
Mimaki JV330 -160
Mimaki JV330 -160
Mimaki JV330 -160
Mimaki JV330 -160

Mimaki JV330 -160

Amazing quality, Blazing speed, Uncompromising versatility.

The Mimaki 330 Series is a flagship model that combines Mimaki Engineering's technological expertise accumulated over more than 20 years to deliver beautiful image quality, high productivity, and high value added functions that assist in saving work.

"JV330 Series" is a mid- to high-end eco-solvent inkjet printer that has been added to the line-up to meet customer needs in addition to the entry-level 100 Series and standard 300 Series, 300 Plus Series.

The 330 Series further enhanced the chassis rigidity upon overall review of the hardware design from ground up, also improving the accuracy of droplet placement up to 650%* in comparison to our conventional product through innovative waveform control technology. And also features a new drop technology to suppress banding, meeting the professional requirements of our customers to achieve overwhelming high image quality and high productivity.

Features of the JV330-160:

  • Unparalleled accuracy enhancement through the combination of the new toughened chassis and advanced ink drop control technology
  • Additional banding suppression by the "Mimaki Weaving Dot Technology" of new drop technology
  • Higher image quality despite low-pass printing due to improved single-line resolution
  • New input profile "Deep Color Natural"
  • Solution for job requiring quick delivery with the high printing speed
  • XY slitter capable of reducing post-process work by X-axis & Y-axis sheet-fed cutting
  • Media changer to which Max. three rolls of media are attachable to enhance your work efficiency
  • New conveyance mechanism ensures reliable long hour print operation
  • Mimaki Remote Access (MRA) enables wireless printer operation.



Read More
Mimaki JV330 Brochure

Mimaki JV330 Brochure
Enquire Now

Print head On-demand piezo head (2 staggered layout)
Print resolution 600dpi, 800dpi, 900dpi, 1200dpi
Print gap By manual 3 levels (2.0/2.5/3.0 mm)
Ink Type/Color Eco-solvent ink
SS21 (C, M, Y, K, Lc, Lm, Lk, Or, W)
SS22 (C, M, Y, K, Lc, Lm, Lk, Or, W)
BS4 (C, M, Y, K)
Capacity SS21: 2L ink pack (500ml ink pack only for White ink)
SS22: 1L ink pack (500ml ink pack only for White ink)
BS4: 2L ink pack
Ink circulation Circulation in damper MCTv2
Maximum print width 1,360mm (53.5") 1,610mm (63.4")
Media Maximum width 1,370mm (53.9") 1,620mm (63.8")
Thickness 1 mm or lower
Roll diameter φ250 mm or less
Mountable no. Max. Three rolls
Roll weight One roll：Max. 45 kg (99.2 lb) or less
Three rolls：Total 90 kg (198.4 lb) or less
Roll inside diameter 2 inch / 3 inch
Media cutting Auto cutting by cutter of head unit *1
Interface Ethernet 1000 BASE-T (Recommended) / USB2.0 Hi-speed
Certifications VCCI class A, FCC class A, ETL IEC 62368-1,
CE Marking (EMC, Low voltage, Machinery directive, and RoHS),
CB, REACH, Energy Star, RCM, KC, UKCA
Power supply Main unit：(Single phase AC100-120/200-240V±10％, 50/60Hz±1Hz) ×2
Power consumption Max. 1,440 W or less x 2 / Min. 4.5 W or less (Sleep mode)
Operational environment Temperature: 20–30 °C (68–86 °F)
Humidity: 35–65% Rh (Non condensing)
Recommended temperature: 20–25 °C (68–77 °F)
Dust level: General office level
Dimensions (W×D×H) 2,920 × 1,215 × 1,305 mm
(115.0 x 47.8 x 51.4") 3,170 × 1,215 × 1,305 mm
(124.8 x 47.8 x 51.4")
Weight 358 kg (789.2 lb) 368 kg (811.3 lb)

Delivery and Installation is available across New Zealand.
Service, Warranty and Training is also available.
Charges may apply and will be quoted upon enquiry.
Finance options are also available – speak to one of our hardware experts today!

Specification

Print head On-demand piezo head (2 staggered layout)
Print resolution 600dpi, 800dpi, 900dpi, 1200dpi
Print gap By manual 3 levels (2.0/2.5/3.0 mm)
Ink Type/Color Eco-solvent ink
SS21 (C, M, Y, K, Lc, Lm, Lk, Or, W)
SS22 (C, M, Y, K, Lc, Lm, Lk, Or, W)
BS4 (C, M, Y, K)
Capacity SS21: 2L ink pack (500ml ink pack only for White ink)
SS22: 1L ink pack (500ml ink pack only for White ink)
BS4: 2L ink pack
Ink circulation Circulation in damper MCTv2
Maximum print width 1,360mm (53.5") 1,610mm (63.4")
Media Maximum width 1,370mm (53.9") 1,620mm (63.8")
Thickness 1 mm or lower
Roll diameter φ250 mm or less
Mountable no. Max. Three rolls
Roll weight One roll：Max. 45 kg (99.2 lb) or less
Three rolls：Total 90 kg (198.4 lb) or less
Roll inside diameter 2 inch / 3 inch
Media cutting Auto cutting by cutter of head unit *1
Interface Ethernet 1000 BASE-T (Recommended) / USB2.0 Hi-speed
Certifications VCCI class A, FCC class A, ETL IEC 62368-1,
CE Marking (EMC, Low voltage, Machinery directive, and RoHS),
CB, REACH, Energy Star, RCM, KC, UKCA
Power supply Main unit：(Single phase AC100-120/200-240V±10％, 50/60Hz±1Hz) ×2
Power consumption Max. 1,440 W or less x 2 / Min. 4.5 W or less (Sleep mode)
Operational environment Temperature: 20–30 °C (68–86 °F)
Humidity: 35–65% Rh (Non condensing)
Recommended temperature: 20–25 °C (68–77 °F)
Dust level: General office level
Dimensions (W×D×H) 2,920 × 1,215 × 1,305 mm
(115.0 x 47.8 x 51.4") 3,170 × 1,215 × 1,305 mm
(124.8 x 47.8 x 51.4")
Weight 358 kg (789.2 lb) 368 kg (811.3 lb)

Delivery Information

Delivery and Installation is available across New Zealand.
Service, Warranty and Training is also available.
Charges may apply and will be quoted upon enquiry.
Finance options are also available – speak to one of our hardware experts today!
